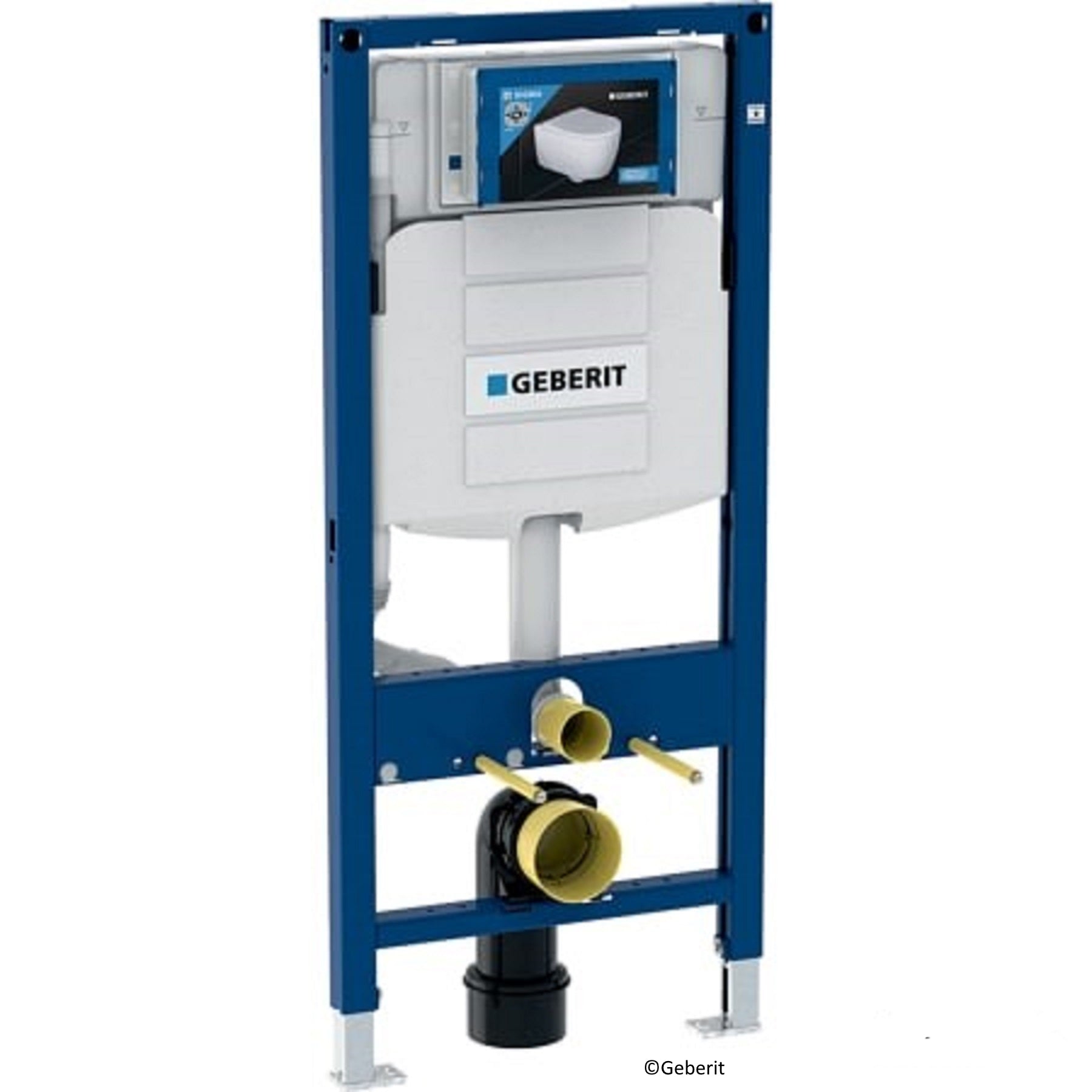

Geberit Duofix toilet pre-wall element UP320, Sigma concealed cistern 12 cm, 112cm

Geberit Duofix toilet pre-wall element UP320, Sigma concealed cistern 12 cm, 112cm

Item description:
- Manufacturer number: 111.300.00.5
- Model: Sigma UP320 cistern 12 cm
- Product type: WC wall element
- Geberit brand
- Flow pressure 10-1000 kPa
- Minimum flow pressure 50 kPa
- Maximum operating temperature water 25 °C
- Flush volume factory setting 6 and 3 l Large flush volume
- Adjustment range 4.5 / 6 / 7.5 l
- Small flush volume setting range 3-4 l
- Calculation flow 0.11 l/s
- Water connection R 1/2", MF capable, with integrated angle valve and handwheel

Item properties:
- For drywall
- For installation in partial or full-height pre-wall installations
- For installation in floor-to-ceiling installation walls
- For installation in partial or full-height Geberit Duofix system walls
- For wall-mounted toilets with connection dimensions according to DIN EN 33:2011-11

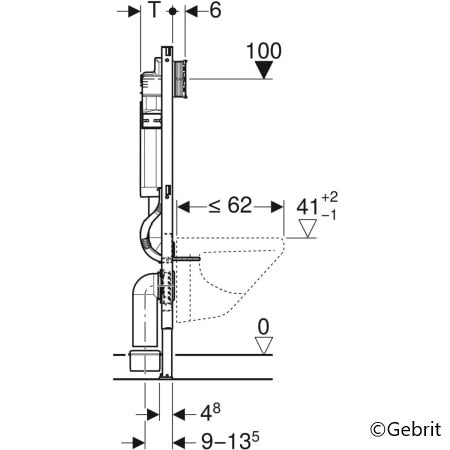

- For wall-mounted toilets with a projection of up to 62 cm
- For 1-volume, 2-volume or rinse-stop rinse
- For floor structures 0-20 cm properties
- Self-supporting frame, powder-coated • Frame with drill holes ø 9 mm for fastening in wooden frame construction
- Frame prepared for supporting toilet ceramics with a small contact surface
- Galvanized footrests, adjustable 0-20 cm
- Footrests with slip resistance
- Rotatable base plates, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
- Connection elbow can be mounted in different depth positions without tools, adjustment range 45 mm
- Attachment of connection elbow with sound insulation
- Concealed cisterns operated from the front, insulated from condensation
- Immediate rinsing possible with factory setting
- Assembly and maintenance work on the concealed cistern without tools
- Water connection at the back or top center
- Construction protection for service opening protects against moisture and dirt
- Building protection can be cut to length for service opening
- Equipped with empty pipe for water supply for connecting Geberit AquaClean shower toilets
