T33 universal radiator compact valve radiator height = 300mm including insert valve, picture plug & wall bracket

T33 universal radiator compact valve radiator height = 300mm including insert valve, picture plug & wall bracket

Regular price €254,99 EUR
Regular price Sale price €254,99 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

Oase BL universal radiator, compact radiator, valve radiator type 22/33

We offer you radiators of types 22 and 33. These radiators are a high-quality product and, thanks to their possible uses, are cost-effective and heat-efficient and are suitable as valve or compact radiators. Perfect for living rooms and offices.

Based on the required heat output, the right radiator should be chosen based on either the design (height, length) or the type. When selecting the radiator you can roughly calculate 100W/m² at 70°/55°C flow/return temperature and 20°C room temperature.

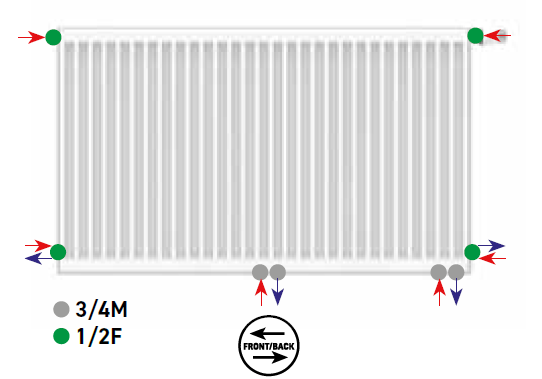

6-way connection, two each on the left, right and bottom side of the radiator, which allows them to be rotated and expands the options for attaching the radiator.

The wall-side connection distance for Type33 is 50mm, the room-side connection distance is 133mm.

For Type22 this is 50mm on both sides. The hub distance is always 50mm less than the overall height of the radiator.

To connect as a valve radiator, the thermostatic valve insert is screwed into the radiator directly on the right or left; the pipe connections come from below, either directly from the floor or from the wall.

Our models come standard with a valve and matching wall brackets. They are tested according to DIN-EN 442.

Thanks to the extremely functional and proven design and production method, these types are very easy to care for and efficient.

Technical data

Type: Universal radiator with 6 connections and 1/2 inch internal thread

Depth: 100mm (Typ22) 158mm (Typ33)

Hub distance: height -50mm

Permissible operating pressure: 10 bar

Permissible operating temperature: 120°C

Valve insert: Right or left as it can be rotated

Color: pure white (RAL 9016)

Use: Optionally as a compact or valve radiator

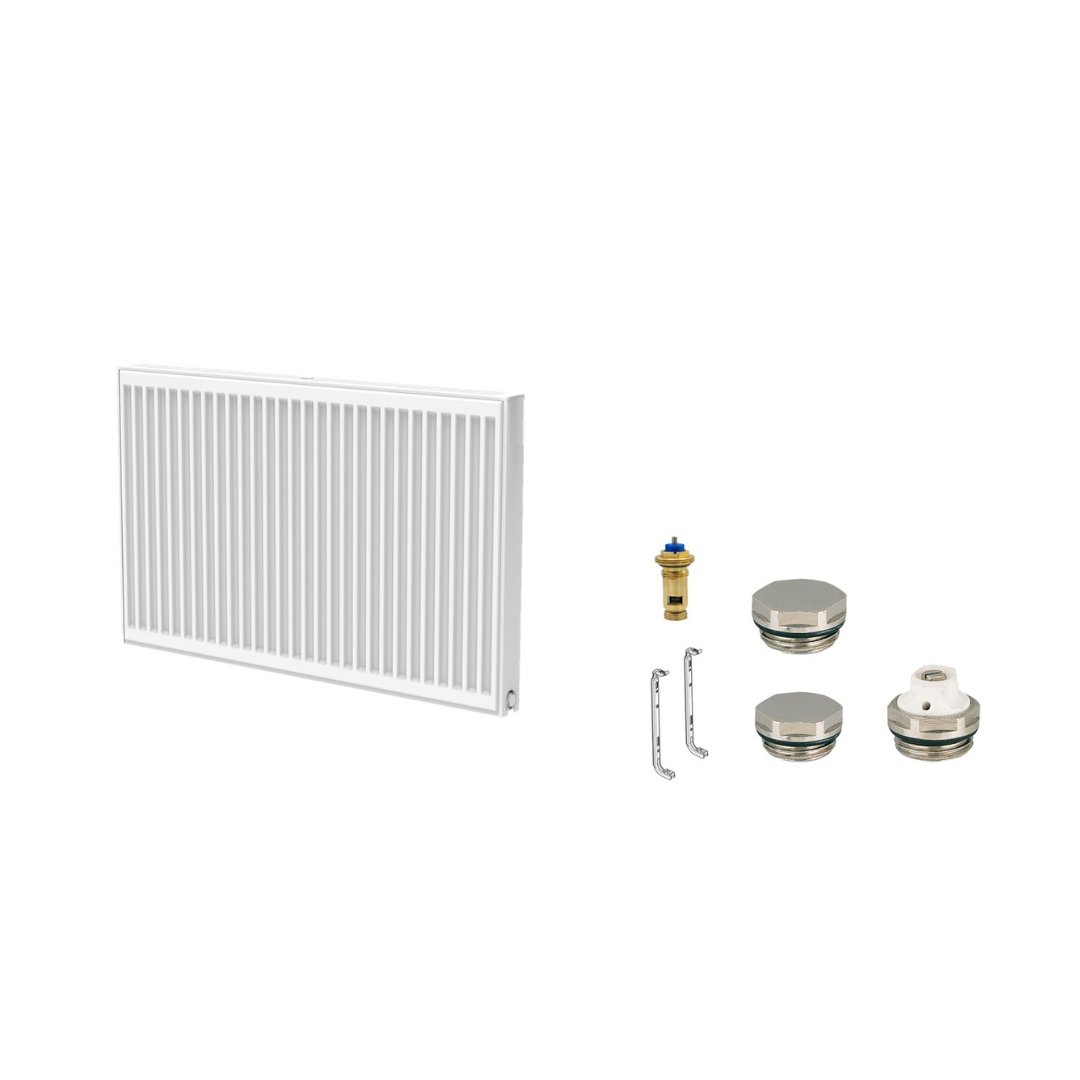

Scope of delivery: radiator, wall brackets, valve (home eggs), blind plug, ventilation plug
