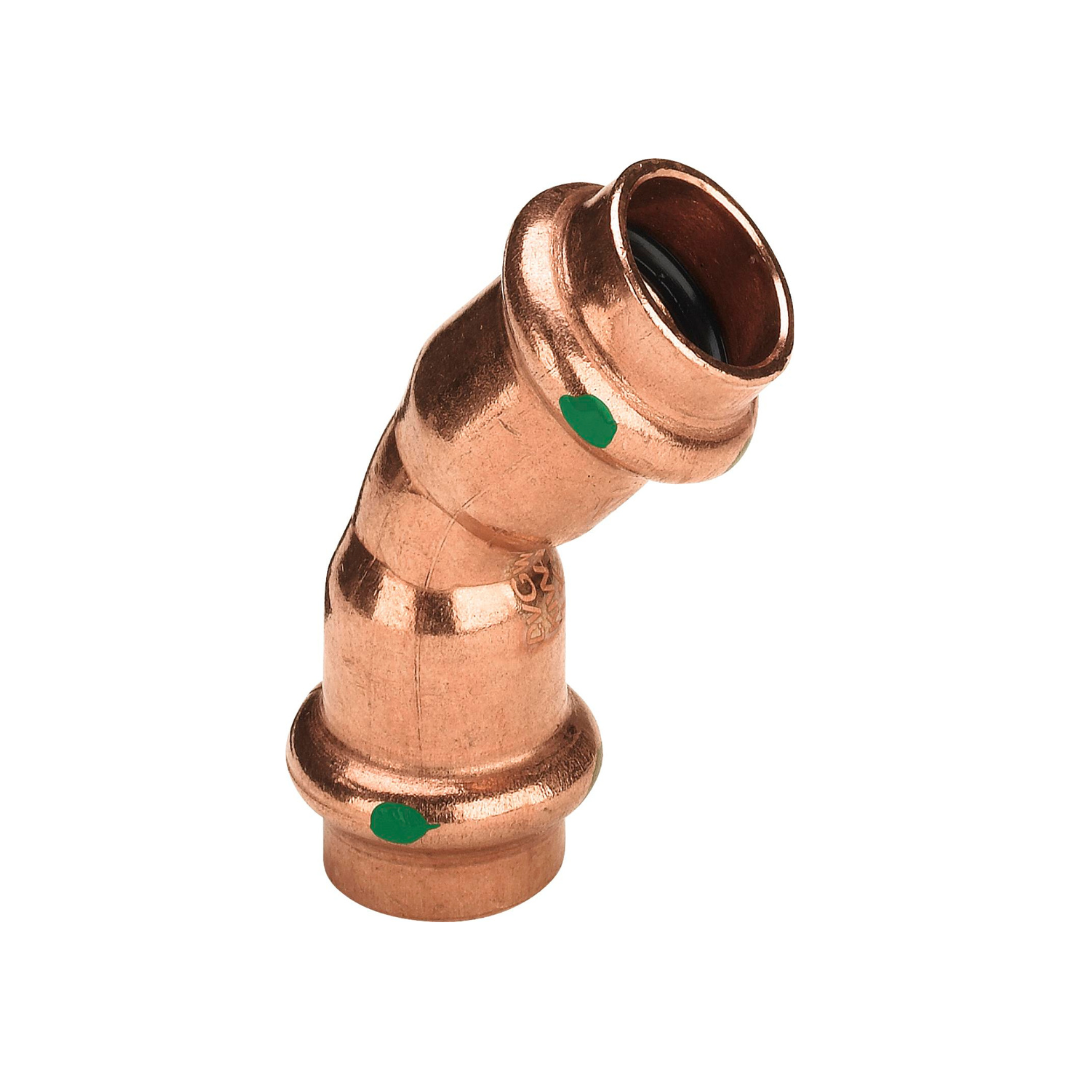

Viega Profipress water copper press fitting elbow 45° II (DVGW)
Viega Profipress water copper press fitting elbow 45° II (DVGW)
Viega Profipress water copper press fitting elbow 45° II (DVGW)
Item description:
- DVGW tested
- Operating temperature [Tmax]: 110°C
- Operating pressure [pmax]: 16 bar
Scope of application:
- Drinking water suitable for
pH values ≥ 7.4
pH values 7.0 - 7.4 and a TOC value ≤ 1.5 mg/l
- Compressed air
EPDM with oil concentration < 25 mg/m 3
FKM at oil concentration ≥ 25 mg/m 3
- Inert gases
- Heating water for pump hot water heating systems
- Solar systems (solar circuit)
- District heating supply systems
- Antifreeze, cooling brines up to a concentration of 50%
A notice:
The press connector system is suitable for creating drinking water installations in accordance with DIN 1988-200 and EN 806-2, taking into account the selection of materials in accordance with DIN EN 12502-1 and DIN 50930-6. If you want to use it for other areas of application and if you have any doubts about the correct choice of material, please contact Viega.
Please also note the information provided by the pipe manufacturer.
